COIL PROCESSING

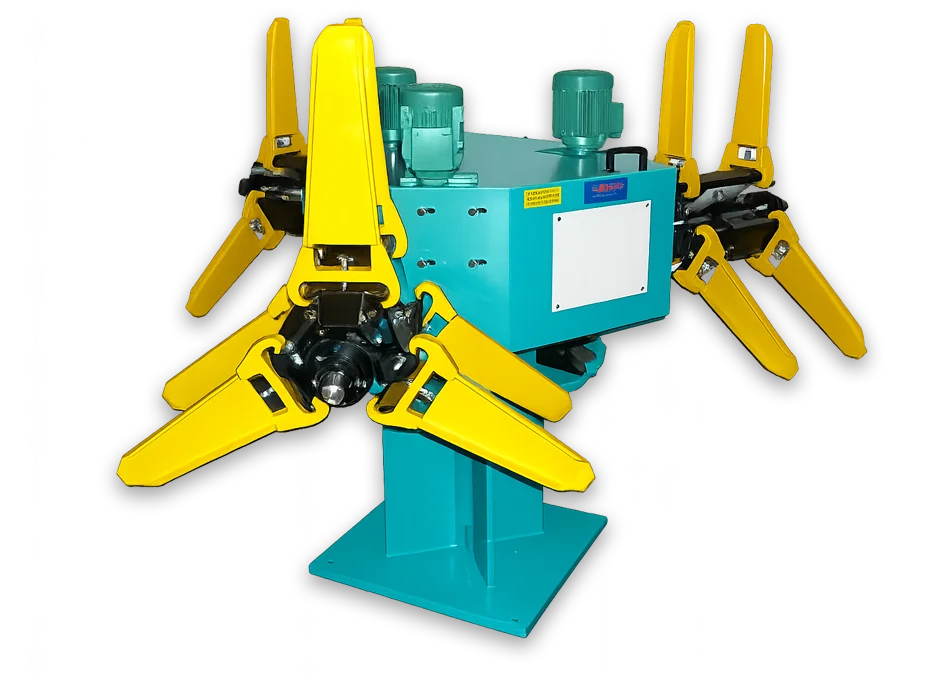

Decoilers /  Coil Holders

Atkin Automation manufactures a wide range of coil holders with capacities ranging from 500kg to 25,000kg, capable of handling strip widths from 50mm up to 2,000mm.

They are available in motorised and non-motorised versions, and in single and double-sided formats.

A full range of complementary equipment is also available, including coil cars, pre-bend and thread-up units, snubbers, and loop controls.

Benefits

The benefits of the Atkin Automation coil holders include:

  • Robust design
  • Ease of operation
  • Reliable performance
  • Improved safety processes in coil handling
More Information
COIL PROCESSING

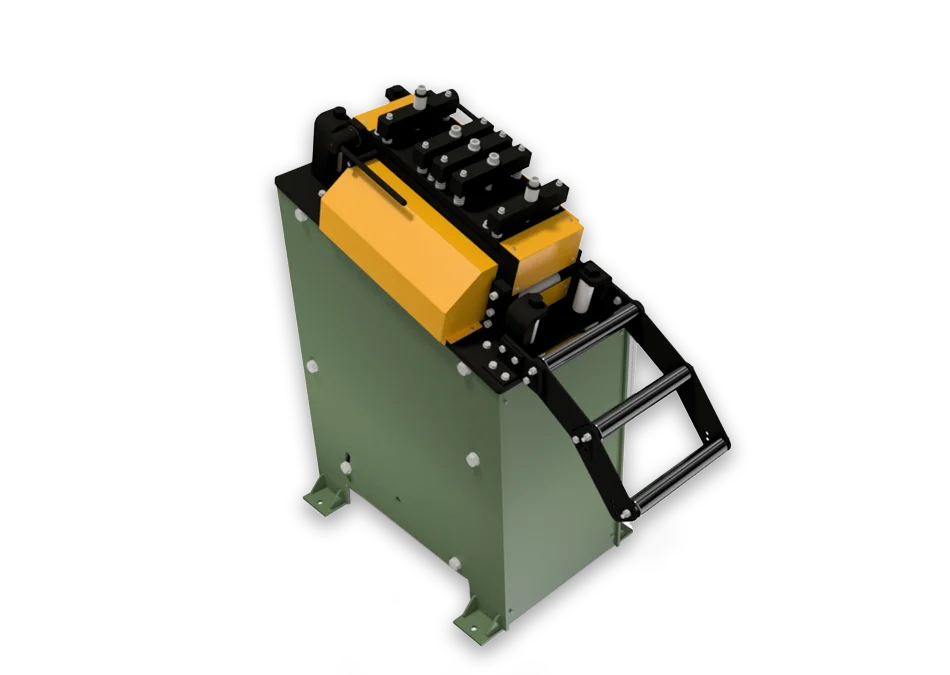

Levellers / Straighteners

Atkin Automation provides a range of light, medium, and heavy-duty straighteners to remove the ‘set’ in uncoiled steel strip between 0.5mm and 8mm in thickness and up to 2,000mm in width.

Levellers / Straighteners are available in a standard range and can be adapted into precision/special machines designed to meet specialised applications.

More Information
COIL PROCESSING

Electronic Servo Roll Feed

Atkin Automation servo-powered roll feed are world-renowned for their performance, both in speed and accuracy. A wide range of these sophisticated units is available to suit every application.

Atkin Automation electronic servo roll feed are available in Light-Duty (RF70), Medium-Duty (RF100), and Heavy-Duty (RF127) ranges. The RF70 range provides a width capacity of 50-600mm for material up to 3mm thick, while the RF100 range offers increased capacity up to 1,000mm wide, and the RF127 range caters to widths up to 1,500mm.

All roll feeds have case-hardened steel rolls and gears, a precision 'zero' backlash gearbox, and a high-quality servo motor and drive.

For high-speed applications, the company offers the HSRF range of electronic servo roll feed, which will provide feeds in excess of 200spm.

The catalogue of servo feeders means that Atkins can draw upon years of experience to tailor the feeder to suit the customer's application.

Benefits

  • Provide repeatable accuracies of 0.1mm
  • High-quality precision-engineered solutions
  • Customer programmable feed and pitch options
  • Software tailored to individual applications, including multi-pitch and 'firing' of tool gags
  • Used widely across numerous sectors to meet various applications
More Information
COIL PROCESSING

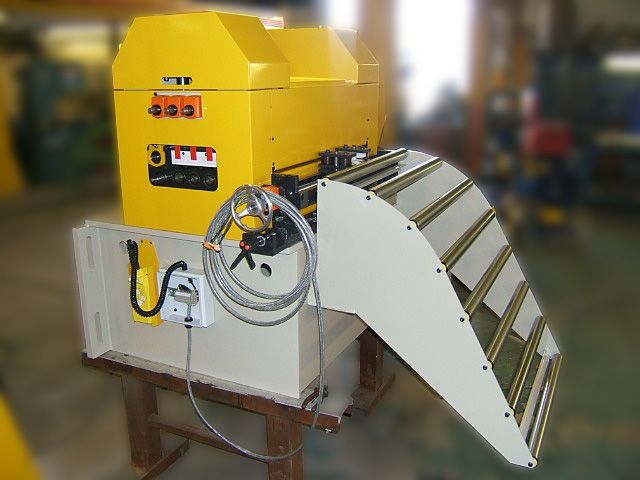

Feeder / Straighteners (3-in-1 Units)

Where floor space is at a premium, the straightener and the roll feed can be incorporated into combined feeder straighteners, when combined with an unpowered coiler can offer the ideal solution to many production requirements.

Feeder-Levellers typically work at a slower speed than a conventional press feed line using separate units.

Despite many benefits, feeder-leveller Press Feed Lines are not suited to delicate strips.

Benefits

  • Saving factory floor space
  • Eliminates the need for looping areas between the straightener and roll feed
  • Ideal for normal press work
  • More cost-effective than separate units
  • Ideally suited to a compact Cut-to-Length Line
More Information
COIL PROCESSING

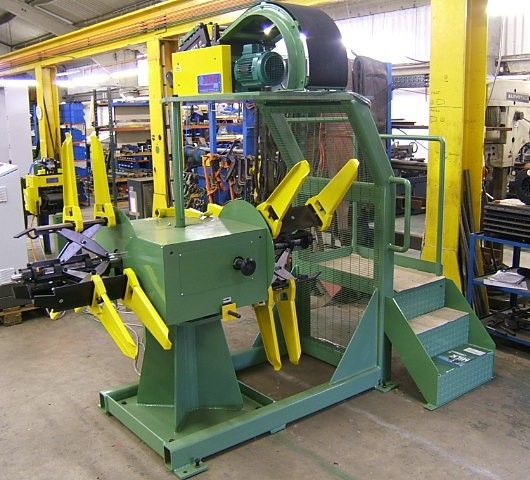

Spacesavers / Cradles

Where floor space is limited, Atkin Automation can supply a combined coil holder with an integral straightener. The Spacesaver features the straightener mounted above the coil holder, significantly reducing the required floor area. Due to the strip threading arrangement, material thickness is generally limited to around 2mm.

Benefits

Spacesavers deliver many benefits, including:

  • Minimal footprint
  • Easy to operate
  • Rapid coil changeover
  • Enhanced operator safety
  • No need to align two separate machines
More Information
COIL PROCESSING

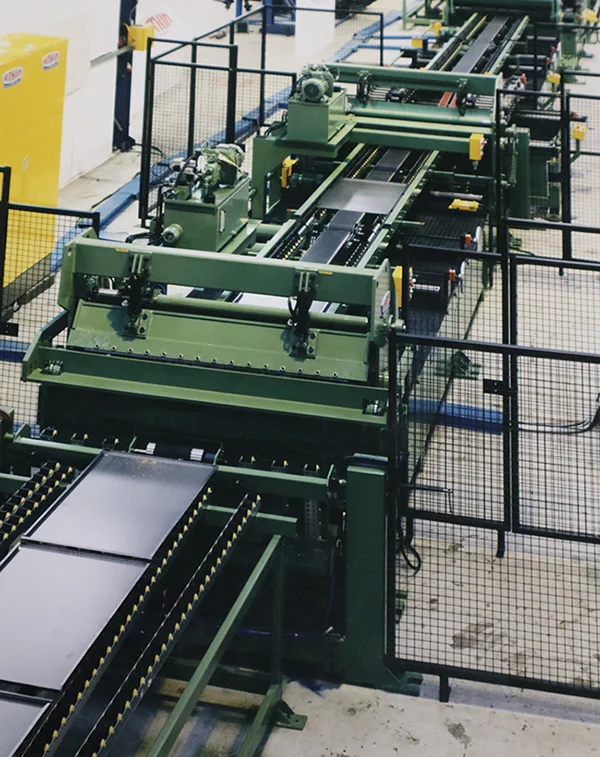

Process Lines

Atkin Automation delivers complete, high-performance coil processing solutions by integrating core coil handling equipment with punching, notching, shearing, roll forming, and other advanced automated technologies. Our systems are designed for manufacturers processing large volumes of metal strip who demand precision, efficiency, and reliability.

We specialise in the design and manufacture of fully integrated CNC coil processing lines, combining multiple operations—including notching, punching, bending, forming, auto-stacking, roll forming, and welding—into a single, streamlined production system.

Process Line Equipment Includes:

  • Benders
  • Punching and Notching Systems
  • Welding Equipment
  • Scrap Handling Systems
  • Shears
  • Roll Formers
  • Stackers

Our machines are engineered to process a broad range of materials, from steel to non-ferrous metals—including precious metals—providing exceptional versatility across diverse industries and applications.

In addition to new systems, Atkin Automation can integrate existing or third-party equipment into new or upgraded production lines, delivering a complete, end-to-end solution from coil to finished product.

Atkin Automation recently successfully won a record seven-figure repeat export order that includes three special purpose laser processing cells and three additional process lines, comprising a fleet of 36 decoilers, recoilers, and associated products for one of its valued overseas customers!

Atkin Automation is renowned for the high quality of its coil processing line equipment and has a long history of serving both UK and international markets. Working closely with customers, we design and build bespoke solutions to individual manufacturing requirements.

More Information
COIL PROCESSING

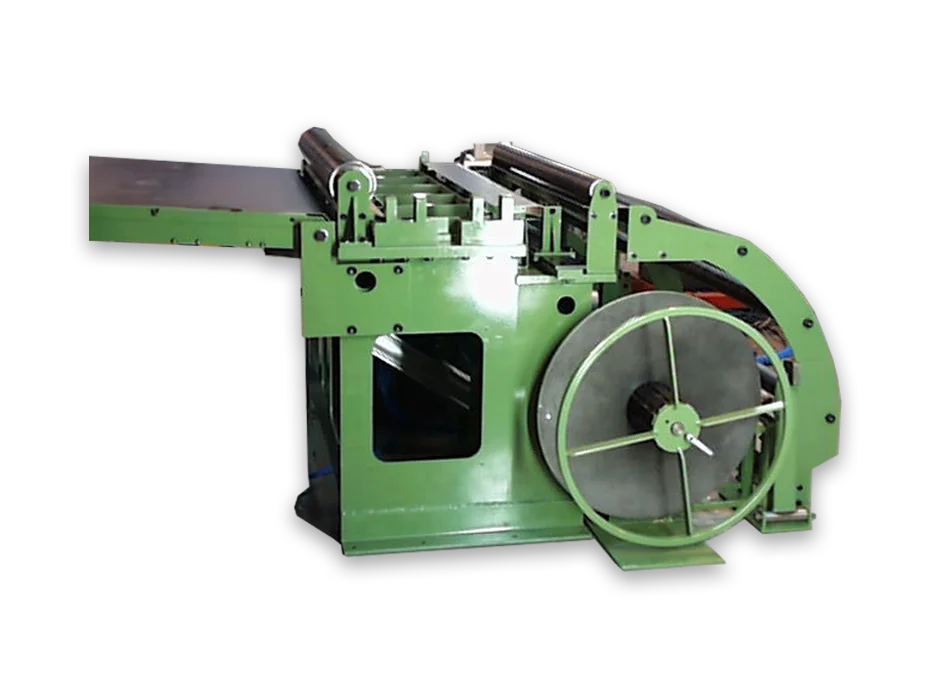

Recoilers

Atkin manufactures Recoilers to complement its range of Coilholders, Levellers, and Rollfeeds.

Their design is based on the proven layout of Atkin coilholders, ensuring seamless integration, consistent performance, and reliable operation within complete coil processing lines.

 Benefits

  • Efficient coil rewinding
  • Improved material flow and tension control
  • Enhanced productivity
  • Safe and controlled coil formation
  • Compatibility with multiple processes
  • Reduced material damage
  • Space and handling efficiency
  • Customisable features
More Information
