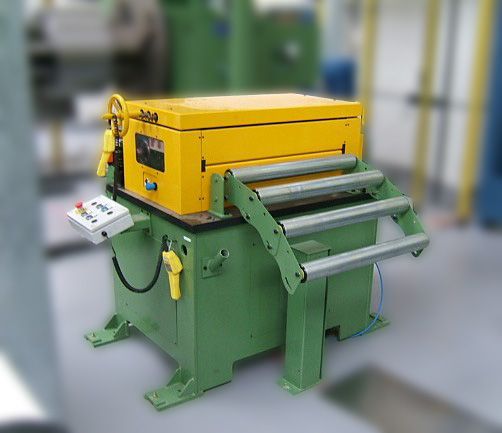

The MS57, MS58, and the MS59 code straighteners have manually adjusted pinch and levelling rolls. The rolls are actuated by bridge piece and chock adjustment.
Drive is by an AC gearmotor and chain transmission. Control can either be fixed speed or variable speed with an inverter. Loop control can vary from simple twin probe or more complex with laser control.

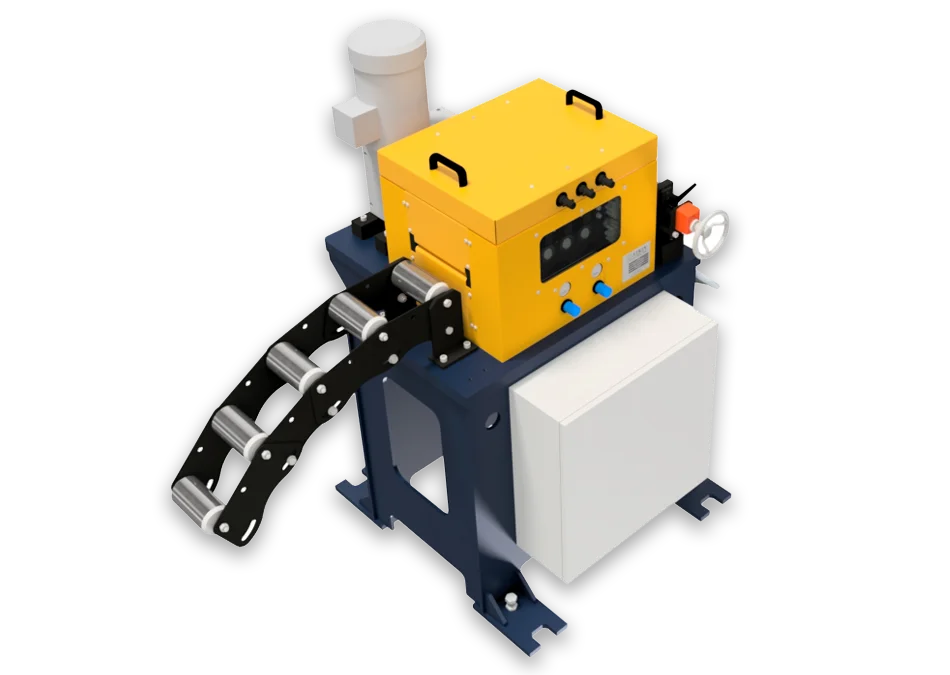

The MS52, MS53, and the MS54 code straighteners have pneumatically loaded pinch rolls and manual cross shaft and bevel gear adjusted levelling rolls.
Drive is by an AC gearmotor and direct coupled to a driven lower roll. Control would be variable speed with an inverter. Loop control can vary from simple twin probe or more complex with laser control.
Benefits
- Remove coil set prior to punching
- Quick and simple coil feeding
- Easy to clean
- Quick roll adjustment
Having served various different industries, Atkin Automation holds the expertise to understand customer needs and produce a wide variety of straighteners. We have successfully delivered projects for sectors such as construction, automotive components, steel stockholders, office and shop equipment manufacturers as well as white goods manufacturers.
If you are thinking of installing a new feed line or replacing individual components, Atkin Automation can support your requirements.
