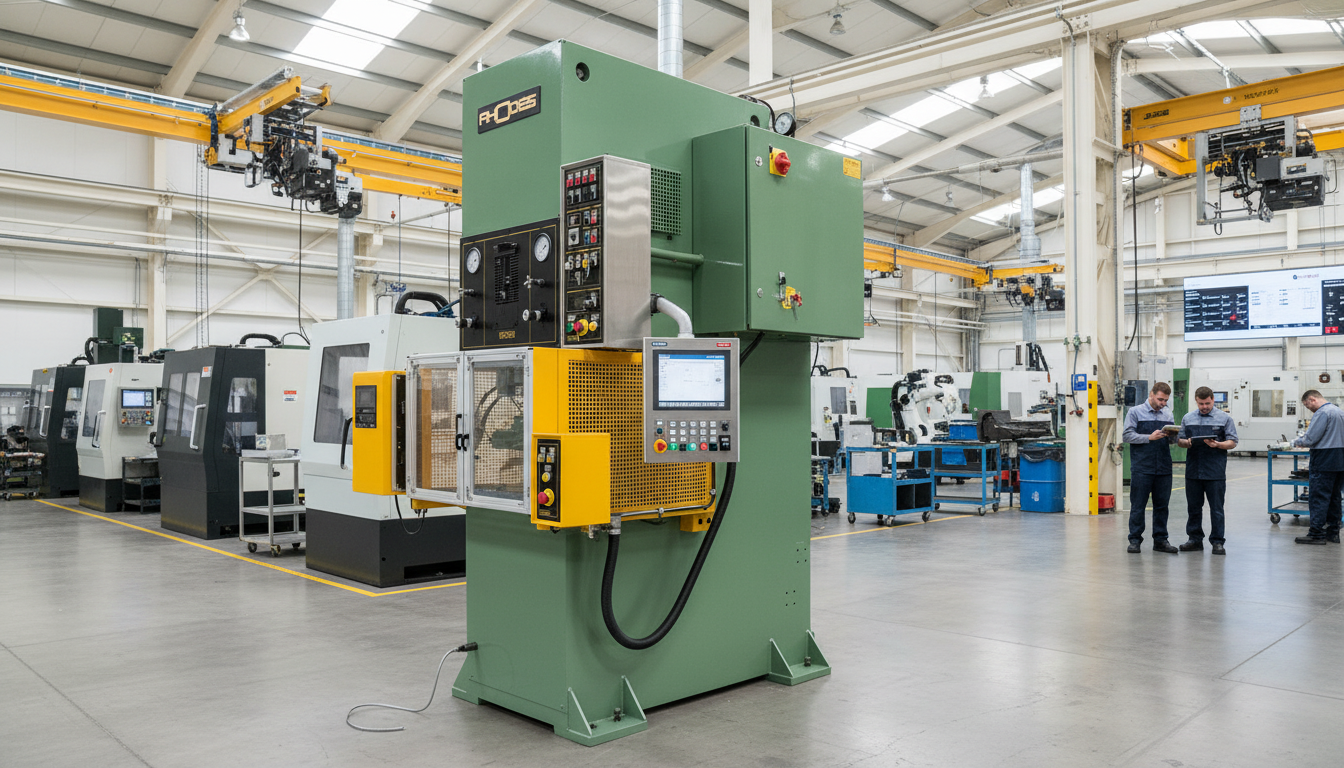

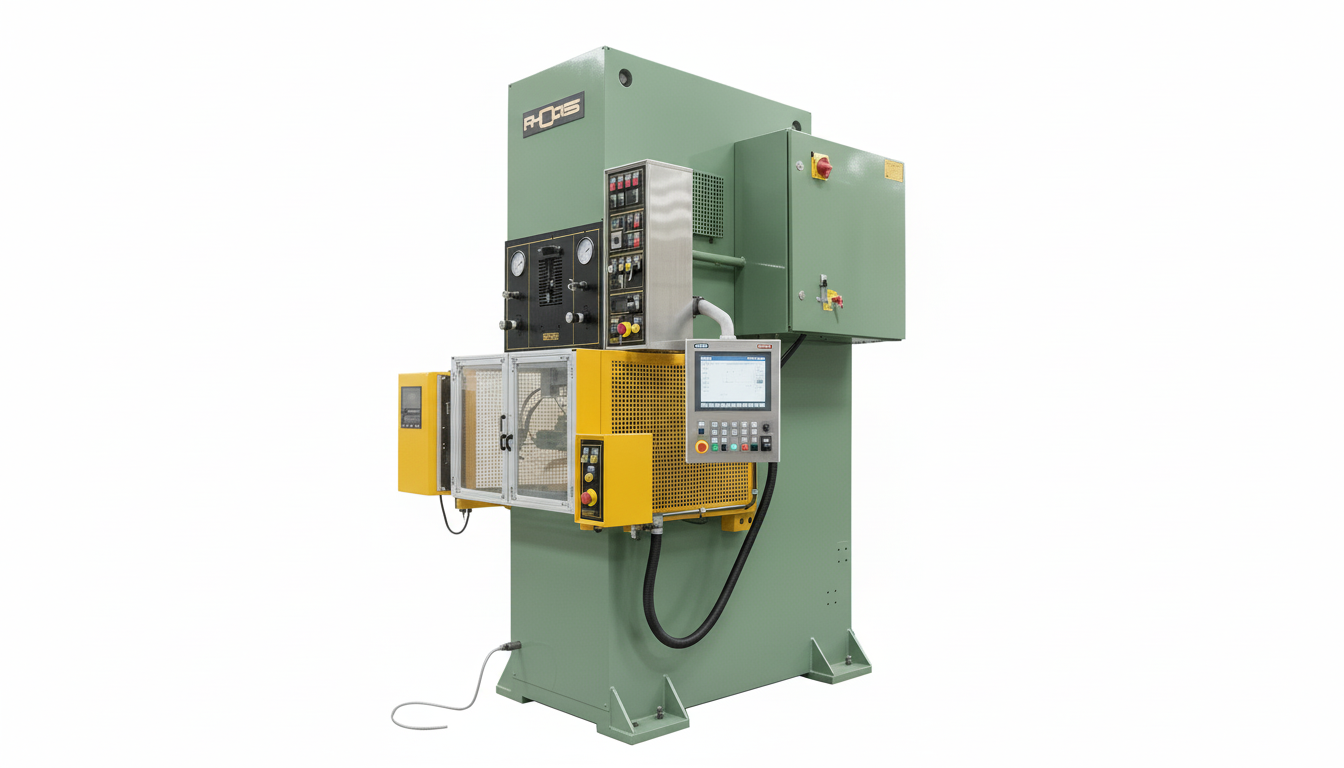

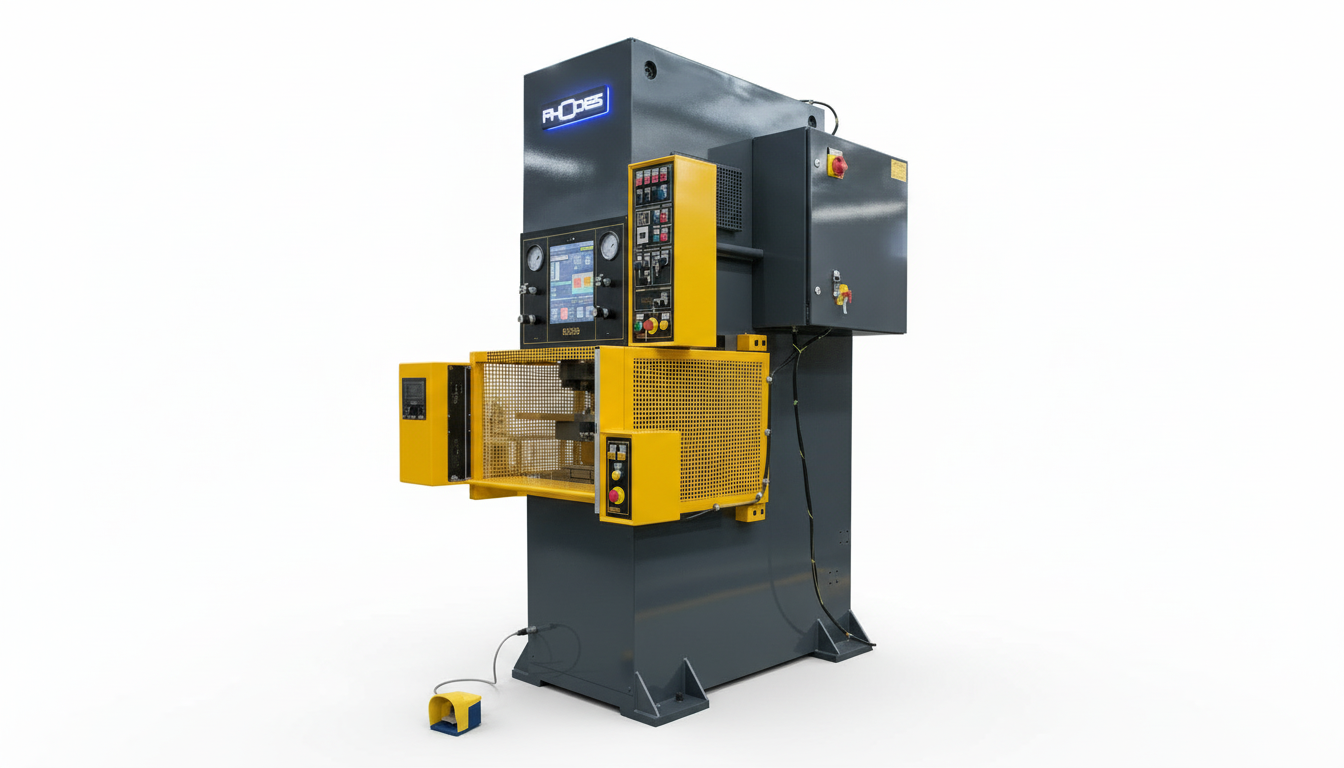

The Rhodes Interform's extensive HOF Model Open Fronted Hydraulic Press Range are primarily suited to "Second Operation" hand fed parts production in the automotive, building metalwork and other medium to high volume small parts and is available in six different models and from 25 to 160 tonne.
Integral Design
All hydraulic equipment is mounted within the press frame, along with the main oil tank.
All valves are manifold-mounted for ease of maintenance, and a pressure relief valve protects against overload.
Our hydraulic press range can be fitted with a variety of optional extras.
Extra Features
Rhodes hydraulic presses can be fitted with a variety of additional equipment, including ejectors in either the slide or under the press bed.
Die cushions, together with CNC controls, are also available as an option.

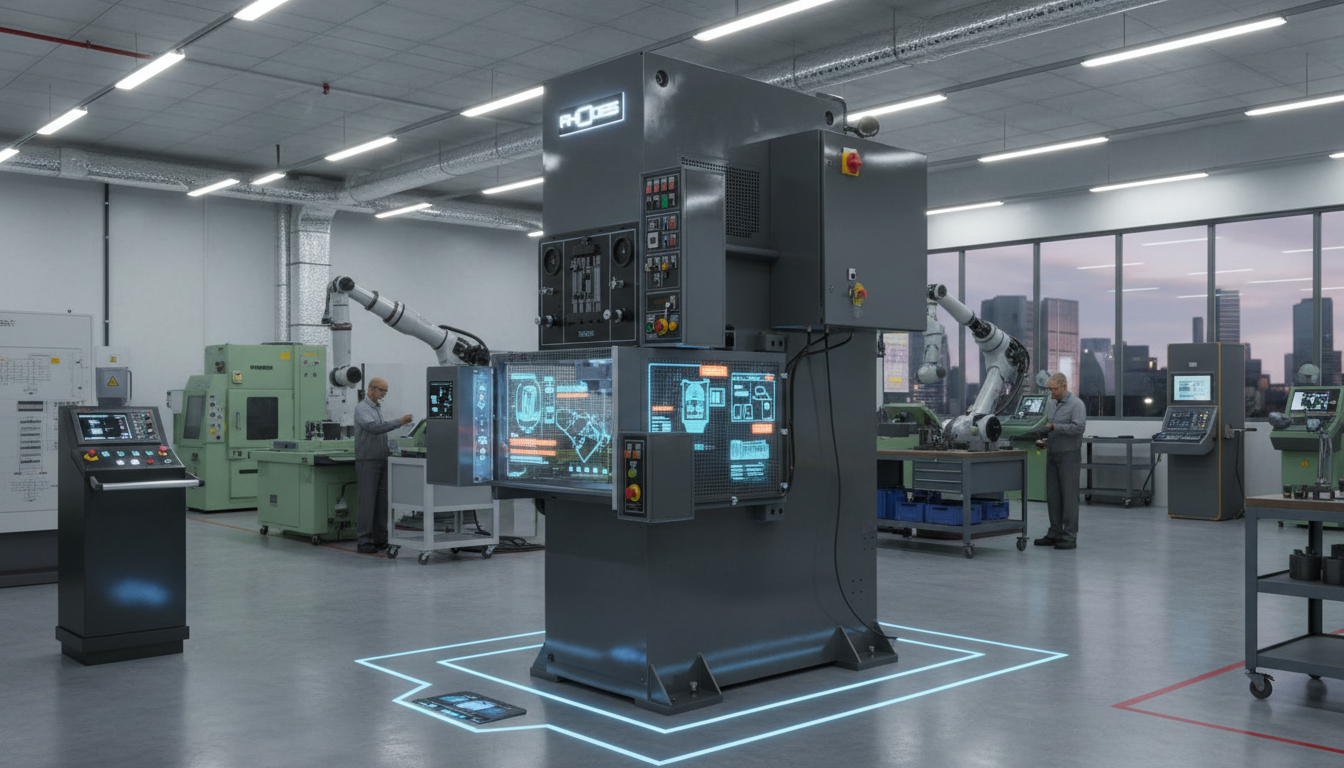

Automation
A wide range of automation equipment is available, from second operation feeders and transfer feed systems to fully automated forming lines. This includes the Rhodes "Rhobot" inter-press transfer.
Rhodes manufactures a range of metal forming hydraulic presses, including Double Sided, Open Fronted, and Four Pillar, to cater for all customer requirements.
Applications
- Automotive
- Building metalwork
- Other medium to high volume small part sectors
Their high working speeds and flexibility allow for quick changeover times whihc coupled with reduced cycle times maximise efficiency and profitability.
Specification
Rating (Tonnes)
25
Stroke (mm)
150

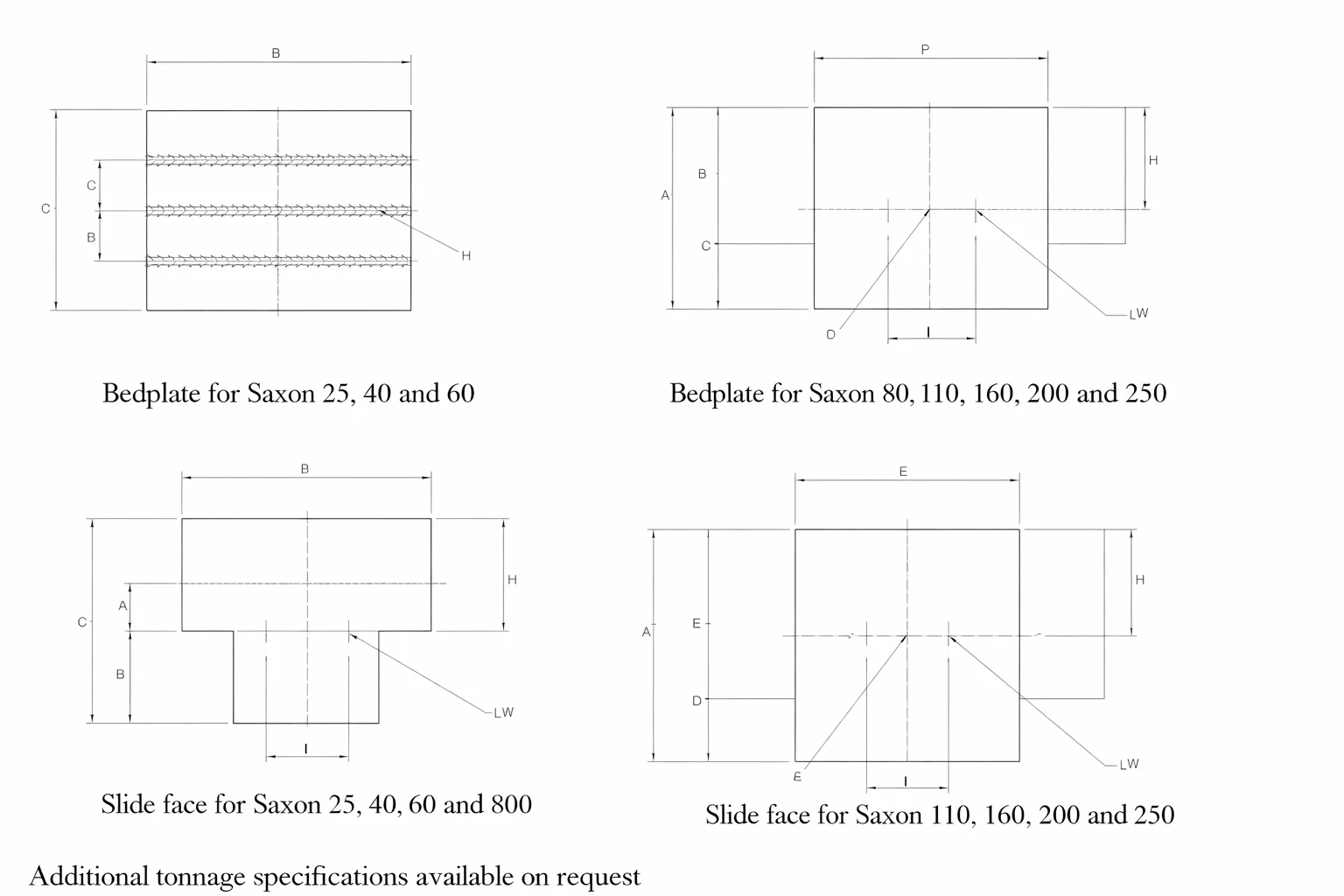

Bedplate area (mm)
670 x 475
Slide area (mm)
425 x 250
Shut Height (mm)
200
Hole in Bed (mm)
350 x 250
Bedplate Height (mm)
900
Approach speed (mm/sec)
405
Pressing speed (mm/sec)
35
Return Speed (mm/sec)
283
Motor Power (kw)
7.5
Noise-dBA
85
Rating (Tonnes)
40
Stroke (mm)
160
Bedplate area (mm)
800 x 560
Slide area (mm)
500 x 350
Shut Height (mm)
215
Hole in Bed (mm)
400 x 350
Bedplate Height (mm)
900
Approach speed (mm/sec)
440
Pressing speed (mm/sec)
35
Return Speed (mm/sec)
300
Motor Power (kw)
15
Noise-dBA
85
Rating (Tonnes)
63
Stroke (mm)
160
Bedplate area (mm)
900 x 600
Slide area (mm)
530 x 530
Shut Height (mm)
245
Hole in Bed (mm)
460 x 400
Bedplate Height (mm)
900
Approach speed (mm/sec)
420
Pressing speed (mm/sec)
32
Return Speed (mm/sec)
300
Motor Power (kw)
18.5
Noise-dBA
85
Rating (Tonnes)
100
Stroke (mm)
200
Bedplate area (mm)
1060 x 750
Slide area (mm)
750 x 600
Shut Height (mm)
290
Hole in Bed (mm)
560 x 500
Bedplate Height (mm)
900
Approach speed (mm/sec)
392
Pressing speed (mm/sec)
27
Return Speed (mm/sec)
284
Motor Power (kw)
22
Noise-dBA
85
Rating (Tonnes)
125
Stroke (mm)
200
Bedplate area (mm)
1060 x 750
Slide area (mm)
800 x 650
Shut Height (mm)
320
Hole in Bed (mm)
560 x 500
Bedplate Height (mm)
900
Approach speed (mm/sec)
392
Pressing speed (mm/sec)
27
Return Speed (mm/sec)
284
Motor Power (kw)
30
Noise-dBA
85
Rating (Tonnes)
160
Stroke (mm)
250
Bedplate area (mm)
1090 x 800
Slide area (mm)
820 x 670
Shut Height (mm)
350
Hole in Bed (mm)
580 x 520
Bedplate Height (mm)
900
Approach speed (mm/sec)
300
Pressing speed (mm/sec)
25
Return Speed (mm/sec)
220
Motor Power (kw)
30
Noise-dBA
85
