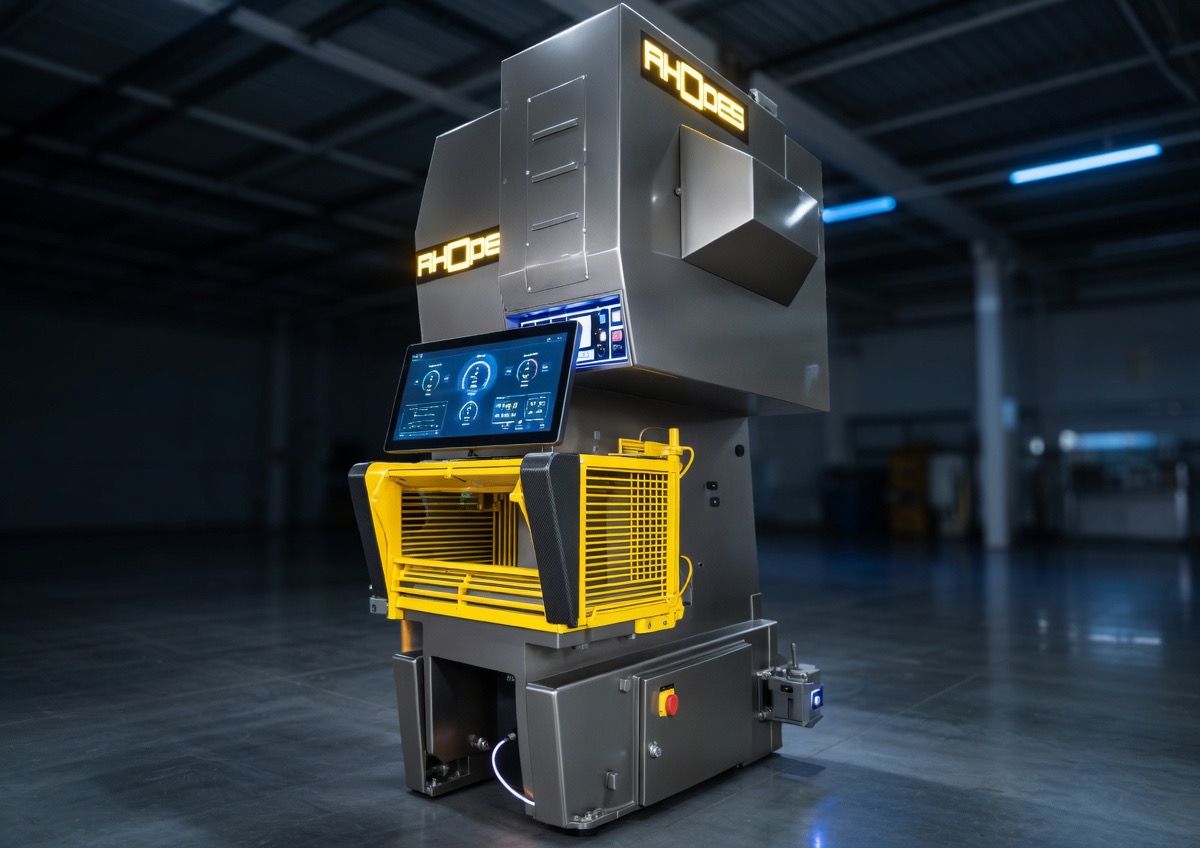

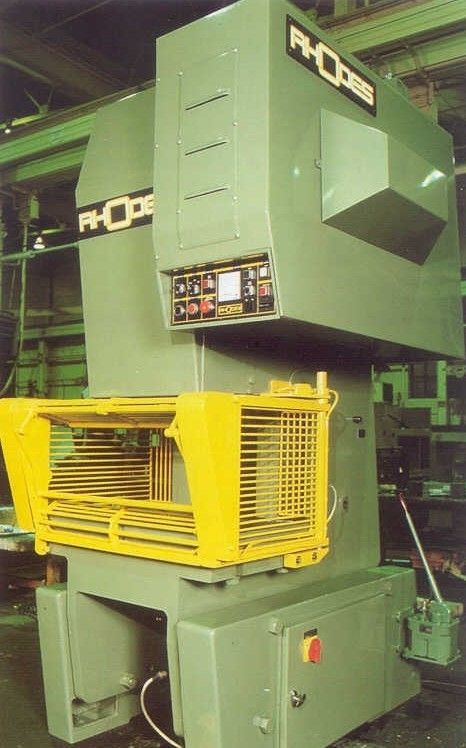

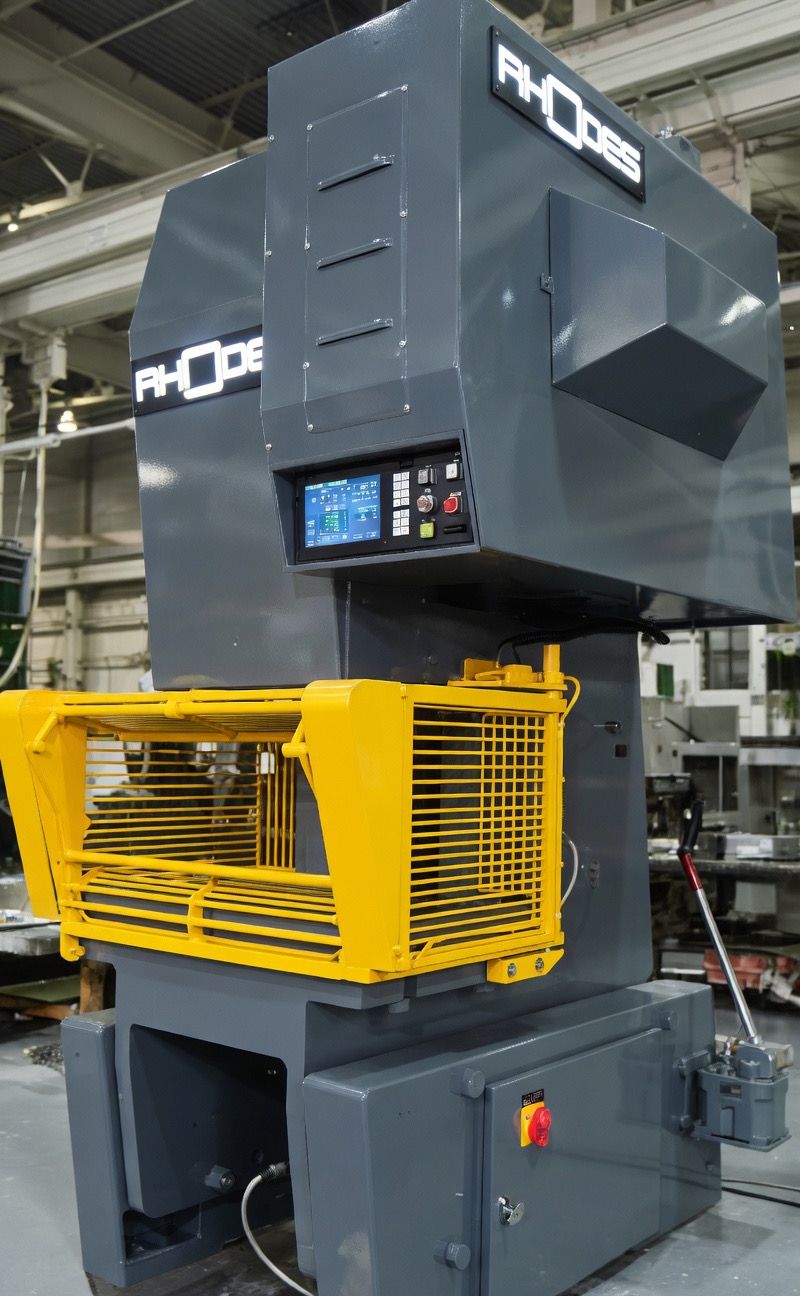

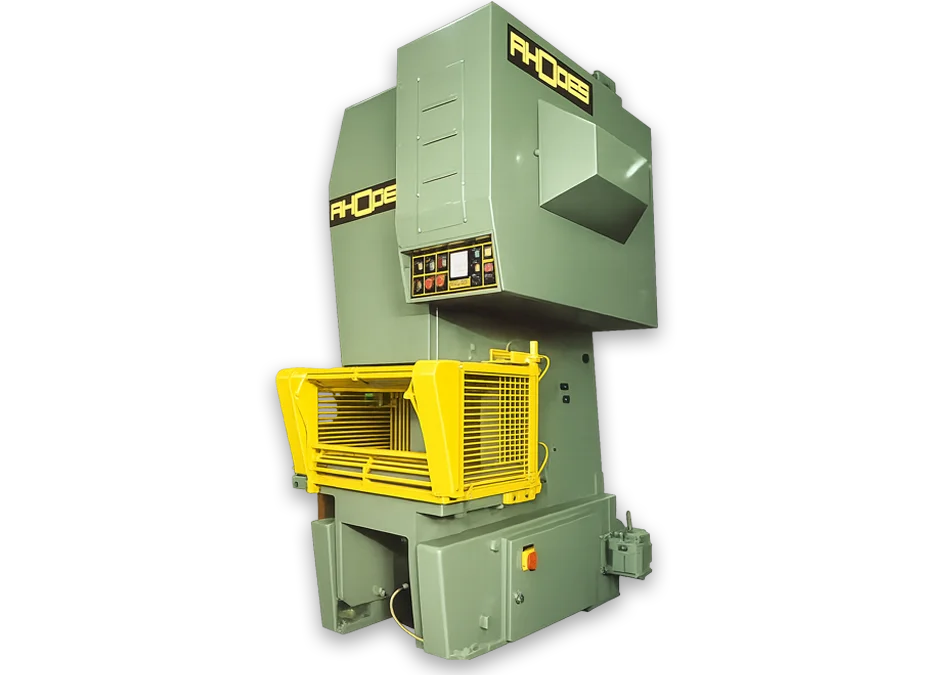

Internationally regarded as the ‘quality press of choice’, the RH range boasts low frame deflection and long die life derived from the heavy press construction and massively ribbed one-piece frame. Made to order, these presses are incorporated into project-critical applications worldwide.
RH Presses – Designed as a low-cost, versatile machine, RH Presses are the backbone of many production lines. The range is available with model varying from 25 to 250 tonnes. Models above 100 tonnes are supplied with a fixed-frame upright as standard.
Design Features of RH Mechanical Press range include:
- Fixed or variable stroke models available
- High-performance, low-inertia hydraulical-actuated combined friction clutch/brake combined units allows for a fast single stroking rate with the minimum amount of heat build-up
- Massive press construction utilising quality materials and generous bearing surfaces guarantees minimum deflection and longer die life
- An ergonomic and compact design to minimise space
- Geared or ungeared models available
- Manual slide adjustment fitted as standard
- Pneumatic slide balance to guarantee smoothness of operation, extended die and bearing life at all speeds
Optional extras:
- A hydraulic overload device is located under the ball screw seating in order to prevent a major overload
- Full CNC controls can be fitted to monitor all the press functions and provide additional auxiliary outputs
- Hydraulic tool clamping and a quick tool change carriage can be fitted to provide 'Just-In-Time' benefits
- Optional safety light curtain and the Rhodes Interform patented G.E.A.R mechanism (which has proven to increase productivity by up to 30% when manually feeding)
Specification
Rating (Tonnes)
25
Continuous operation (Strokes/minute)
165
Clutch engagements/minutes
80
Maximum fixed stroke
4" (102)
Standard variable stroke
1/2" - 4"
(13-102)
Slide adjustment
2" (51)
Motor (HP)
3
Bedplate to slide at half stroke adjustment up
9 1/2" (241)
Thickness of bedplate
2 1/2" (64)

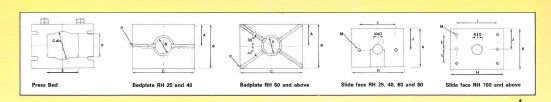

Bedplate
A - 8 1/4" (210)
B - 17" (432)
C - 24" (610)
D - 6 1/2" (165)
Hole in Bed
E - 12" (305)
F - 9" (229)
G - 11" (279)
Slide Face
H - 13 1/2" (343)
I - 9 1/2" (241)
J - 5 1/2"" (140)
K - 10" (254)
L -
Slide Face Dia
M - 11/16" (17)
N - 2" (51)
O Slide Face Deep
6" (152)
P Slots for T-Bolt-Dia
3/4 " (19)
Passage Through Back
11" (279)
Throat depth
8 1/2" (216)
Overall Height
94"
Overall Front to Back
56"
Overall Left to Right
48"
Floor-bed
32" (813)
Approximate weight in tonnes
3
Rating
40
Continuous operation (Strokes/minute)
DD - 165
GRD - 65
Clutch engagements/minutes
DD - 80
GRD - 46
Maximum fixed stroke
4 1/2" (114)
Standard variable stroke
1" - 4 1/2"
(25 - 114)
Slide adjustment
3" (76)
Motor (HP)
5
Bedplate to slide at half stroke adjustment up
11" (279)
Thickness of bedplate
2 1/2" (64)
Bedplate
A - 9 1/2" (235)
B - 19 1/4" (502)
C - 28" (711)
D - 8" (203)
Hole in Bed
E - 14" (356)
F- 10" (254)
G - 12" (305)
Slide Face
H - 15 1/2" (394)
I - 10 3/4" (273)
J - 7 1/4" (184)
K - 12 1/2" (318)
L -
Slide Face Dia
M - 13/16" (21)
N - 2" (51)
O Slide Face Deep
7" (178)
P Slots for T-Bolt-Dia
3/4 " (19)
Passage Through Back
12 3/4" (311)
Throat depth
9 1/2" (241)
Overall Height
96"
Overall Front to Back
58"
Overall Left to Right
53"
Floor-bed
33" (840)
Approximate weight in tonnes
DD - 4"
GRD - 4 1/2"
Rating
60
Continuous operation (Strokes/minute)
DD - 165
GRD - 60
Clutch engagements/minutes
DD - 80
GRD - 42
Maximum fixed stroke
5" (127)
Standard variable stroke
1" - 4 1/2"
(25 - 114)
Slide adjustment
3 1/2" (89)
Motor (HP)
10
Bedplate to slide at half stroke adjustment up
12" (305)
Thickness of bedplate
3" (76)
Bedplate
A - 10 1/2" (267)
B - 22" (559)
C - 31" (787)
D - 8" (203)
Hole in Bed
E - 16" (406)
F- 11" (279)
G - 13" (330)
Slide Face
H - 18" (457)
I - 12 3/4" (324)
J - 9" (229)
K - 15 1/2" (385)
L -
Slide Face Dia
M - 1 1/4" (27)
N - 2" (51)
O Slide Face Deep
7" (178)
P Slots for T-Bolt-Dia
7/8 " (22)
Passage Through Back
14" (356)
Throat depth
10 3/4" (273)
Overall Height
103"
Overall Front to Back
67"
Overall Left to Right
DD - 58"
GRD - 60"
Floor-bed
34" (864)
Approximate weight in tonnes
DD - 6 1/4"
GRD - 7"
Rating
80
Continuous operation (Strokes/minute)
DD - 165
GRD - 60
Clutch engagements/minutes
DD - 80
GRD - 42
Maximum fixed stroke
5" (127)
Standard variable stroke
1" - 5"
(25 -127)
Slide adjustment
3 1/2" (89)
Motor (HP)
10
Bedplate to slide at half stroke adjustment up
14" (356)
Thickness of bedplate
3 1/2" (89)
Bedplate
A - 11 1/4" (286)
B - 23 1/4" (603)
C - 36" (914)
D - 9 1/4" (235)
Hole in Bed
E - 17 1/2" (445)
F- 12" (305)
G - 16" (406)
Slide Face
H - 18" (457)
I - 15 1/2" (394)
J - 9" (229)
K - 15 1/4" (385)
L -
Slide Face Dia
M - 1 1/16" (27)
N - 2" (51)
O Slide Face Deep
7" (178)
P Slots for T-Bolt-Dia
7/8 " (22)
Passage Through Back
14 1/2" (368)
Throat depth
11 1/2" (292)
Overall Height
105"
Overall Front to Back
71"
Overall Left to Right
DD - 58"
GRD - 61"
Floor-bed
34" (864)
Approximate weight in tonnes
DD - 7"
GRD - 7 3/4"
Rating
100
Continuous operation (Strokes/minute)
DD - 115
GRD - 50
Clutch engagements/minutes
DD - 75
GRD - 35
Maximum fixed stroke
6" (152)
Standard variable stroke
1" - 6"
(25 -152)
Slide adjustment
4" (102)
Motor (HP)
DD - 15
GRD - 10
Bedplate to slide at half stroke adjustment up
16" (406)
Thickness of bedplate
3 1/2" (89)
Bedplate
A - 13 1/2 (343)
B - 28" (711)
C - 40" (1016)
D - 10 1/4" (260)
Hole in Bed
E - 20" (508)
F- 16" (406)
G - 18" (457)
Slide Face
H - 36" (914)
I - 30" (762)
J - 12 1/2" (318)
K - 25" (635)
L - 10" (254)
Slide Face Dia
M - 1" (25)
N - 2 1/2" (64)
O Slide Face Deep
7 1/2" (191)
P Slots for T-Bolt-Dia
7/8 " (22)
Passage Through Back
21 1/2" (546)
Throat depth
13 1/4" (349)
Overall Height
127"
Overall Front to Back
87"
Overall Left to Right
73"
Floor-bed
32" (813)
Approximate weight in tonnes
DD - 11"
GRD - 11 3/4"
Rating
160
Continuous operation (Strokes/minute)
45
Clutch engagements/minutes
32
Maximum fixed stroke
6" (152)
Standard variable stroke
1" - 6"
(25 -152)
Slide adjustment
4" (102)
Motor (HP)
15
Bedplate to slide at half stroke adjustment up
16" (406)
Thickness of bedplate
4" (102)
Bedplate
A - 14 3/4" (375)
B - 32 1/4" (832)
C - 43" (1092)
D - 13 1/2" (343)
Hole in Bed
E - 22" (559)
F- 19" (483)
G - 21 1/2" (546)
Slide Face
H - 36" (914)
I - 30" (762)
J - 12 1/2" (318)
K - 25" (635)
L - 10" (254)
Slide Face Dia
M - 1 1/8" (29)
N - 2 1/2" (64)
O Slide Face Deep
8" (203)
P Slots for T-Bolt-Dia
7/8 " (22)
Passage Through Back
25 5/8" (651)
Throat depth
15" (381)
Overall Height
138"
Overall Front to Back
96"
Overall Left to Right
87"
Floor-bed
34" (864)
Approximate weight in tonnes
15 1/4"
Rating
200
Continuous operation (Strokes/minute)
33
Clutch engagements/minutes
23
Maximum fixed stroke
6" (152)
Standard variable stroke
1" - 6"
(25 -152)
Slide adjustment
4" (102)
Motor (HP)
20
Bedplate to slide at half stroke adjustment up
20" (508)
Thickness of bedplate
4 1/2" (114)
Bedplate
A - 18" (457)
B - 38" (965)
C - 46" (1168)
D -
Hole in Bed
E - 24" (610)
F- 22" (559)
G -
Slide Face
H - 38" (965)
I - 34" (864)
J - 13" (330)
K - 26" (660)
L - 11" (279)
Slide Face Dia
M - 1 1/8" (29)
N - 2 1/2" (64)
O Slide Face Deep
8" (203)
P Slots for T-Bolt-Dia
1 1/8" (29)
Passage Through Back
26" (660)
Throat depth
18" (457)
Overall Height
160"
Overall Front to Back
105"
Overall Left to Right
93"
Floor-bed
34" (864)
Approximate weight in tonnes
24"
Rating
250
Continuous operation (Strokes/minute)
30
Clutch engagements/minutes
21
Maximum fixed stroke
8" (203)
Standard variable stroke
2" - 8"
(51 -203)
Slide adjustment
4" (102)
Motor (HP)
25
Bedplate to slide at half stroke adjustment up
24" (610)
Thickness of bedplate
5 1/2" (140)
Bedplate
A - 18" (457)
B - 38" (965)
C - 50" (1270)
D -
Hole in Bed
E - 26" (660)
F- 24" (610)
G -
Slide Face
H - 45" (1143)
I -
J - 15" (381)
K - 30" (762)
L -
Slide Face Dia
M - 1 3/8" (35)
N - 2 1/2" (64)
O Slide Face Deep
-
P Slots for T-Bolt-Dia
1 1/4" (32)
Passage Through Back
28" (711)
Throat depth
18" (457)
Overall Height
183"
Overall Front to Back
112"
Overall Left to Right
97"
Floor-bed
34 1/2" (875)
Approximate weight in tonnes
25"
